RF-Design GmbH
Booth number: 4K2-5
rf-design-online.de
About us
RF-Design, founded in 1998 by Ralf Mayr, is a medium-sized, owner managed and steadily growing company based in Bensheim/Germany. For 28 years we develop and manufacture a wide range of premium class RF-Distribution, RF-over-Fiber, RF Amplifying and RF Monitoring products for the satellite communications ground infrastructures around the globe. High quality products, our year long expertise, our flexibility and the ability to customize products along with a customer oriented service approache have made us an international reputable partner within this sophisticated industry.
Address
Lahnstr. 13
64625 Bensheim
Germany
E-mail: contact@rf-design-online.de
Phone: +49 6251 80384-0
Internet: www.rf-design-online.de
Contact person:
Ugur Tombul
Sales Manager
E-mail: u.tombul@rf-design-online.de
Phone: +49 6251 80384-22
Products & Services
RF Switch Marix/Router
RF-over-Fiber
RF Monitoring Solutions
Line Amplifiers
Active Splitter / Active Combiners
LNB-Supplyy/Control
SLC4124 Standard LNB/LNA Controller

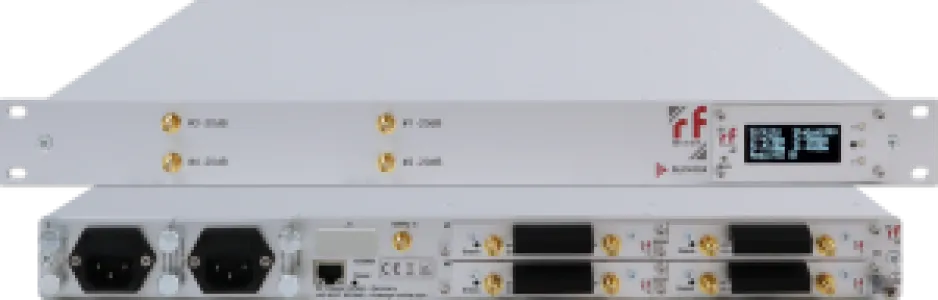

The SLC4124 is a standard LNB power supply unit featuring four internal Bias-Tees/Directional couplers with 13V, 15V, 18V and 24V with 22kHz supply for max. 4 LNB´s. The unit allows to configure all LNB´s individually, also via Web-Interface. The SLC4124 is available in a 1RU/19″ rack mount chassis and also provides 1:1 hot swappable power supply redundancy. Furthermore, the unit offers RF power monitoring for every Bias-Tee via a 20dB measuring port located at the front of the unit.
Local control can be done with front panel LC-Display, keypads and LED´s while remote access, monitoring and control can be done via 10/100Mbit LAN-Interface SNMP and WebGui. The unit is ideally suited for LNB supply purposes in Satellite-, broadcast and broadband communication architectures like Teleports, Earth Stations, broadcast facilities and cable headend platforms
Satellite Transponder Monitor stm3G

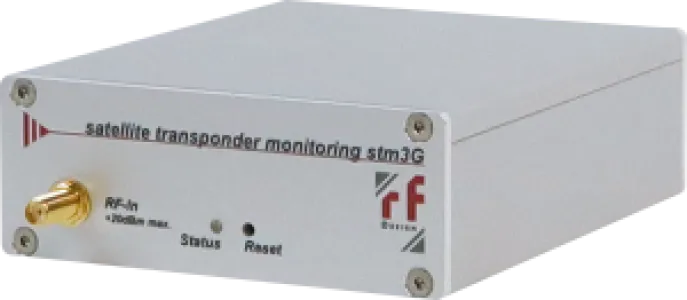

The stm3G is a high-performance, compact and rack-mountable selective RF power monitoring unit, specifically developed for monitoring the power levels of individual satellite transponders in 3GHz and in the L-band range. Based on the proven hardware design of the RF-Design PwrM3G, this enhanced version adds the capability for precise, selective power tracking of defined carrier frequencies.
FiberLink CompactLine

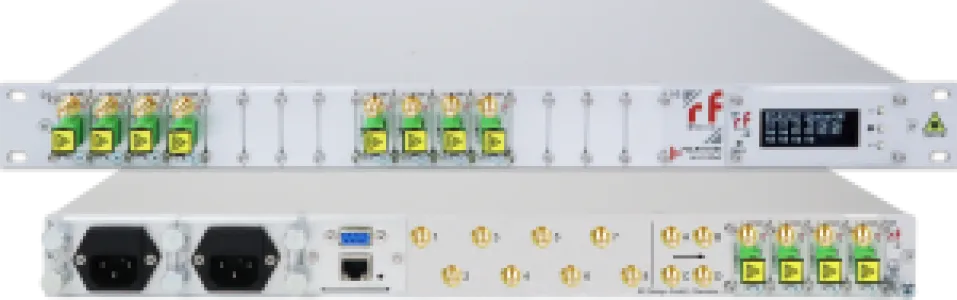

The FiberLink CompactLine Series represents both redundant and non-redundant RF-over-fiber system. The 16×1 non-redundant configuration, along with 4×1:1, 4×2+1, and 2×4+1 redundant configurations, is housed in a 1RU/19″ rack-mount chassis. In addition, 8×1 non-redundant and 4×1:1, 4×2+1, and 2×4+1 redundant configurations are also available in an IP65-rated outdoor enclosure. It is designed for flexible, high quality and secure optical transmission of RF signals (L-Band, Extended L-Band and Broadband 3,2GHt) over up to 20km.
This redundant RF-over-Fiber allows a quattro 2+1 /1:1 or a dual 4+1 redundant configuration and can be populated with 8/12 active optical TX/RX modules and up to 2/4 hot-standby TX/RX modules.
The chassis are designed to allow a mixed population with TX/RX modules within the same chassis, while the chassis are equipped with corresponding RF ports (50Ohm or 75Ohm), which are used either as input or output port as per the individual configuration.
The system features automatic 2+1/4+1 redundancy switching as per preconfigured configurations. Once an error at a TX or RX module occurs, the system automatically activates a switchover to a backup TX or RX module thus ensuring an interference free signal transmission at any time.
Ecoline FiberLink 10GHz

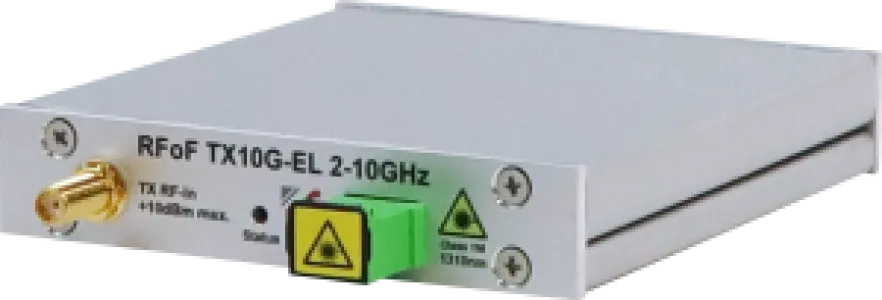

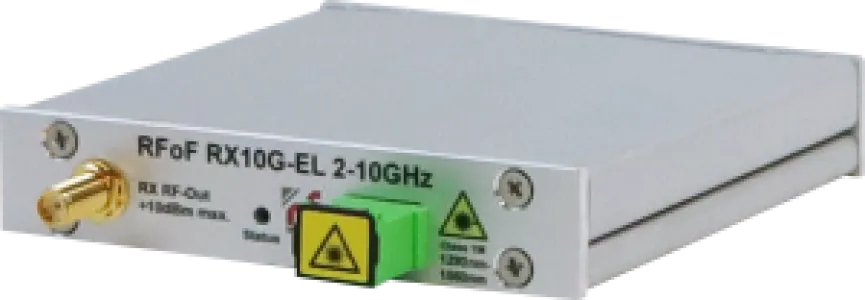

The EcoLine TX/RX10G-EL and Modules represent a cost-effective RF over Fiber solution designed in a compact form allowing a handheld operation as well as population in a 1RU/19” chassis in a locally managed Environment. EcoLine TX/RX10G-EL modules allow a conventional unidirectional links for S and C Band application.

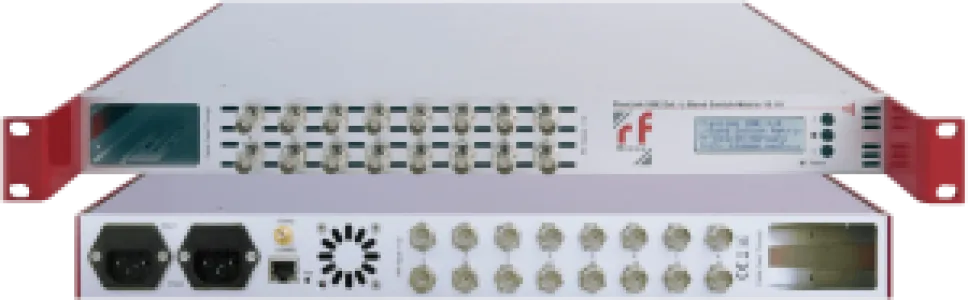

Extended L-Band Switch Matrix FlexLink S9E-1616
